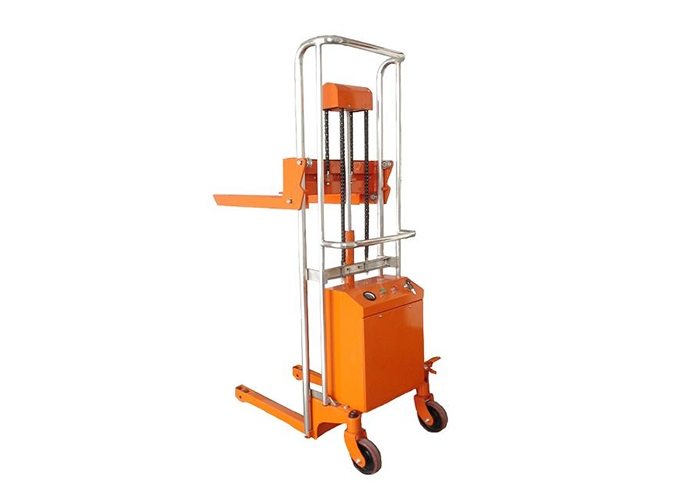

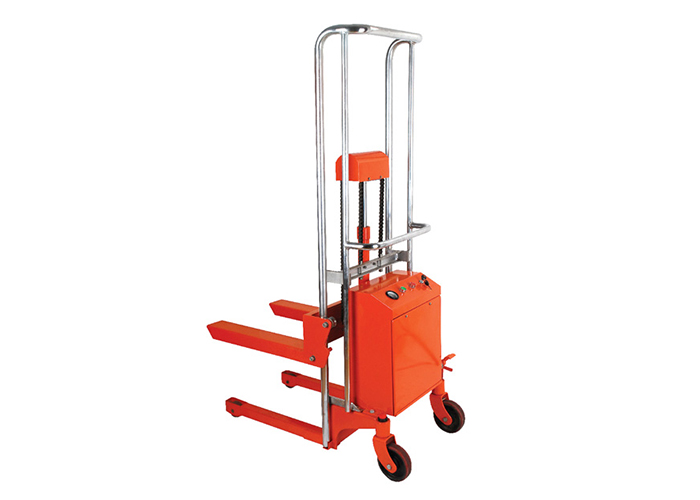

Name:TFD Semi-Electric Hydraulic Stacker
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
 01 Winch Mini Stacker
 02 Manual Hydraulic Mini stacker
 03 Semi-electric Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Pallet Truck
Pallet Tilter
Hoisting And Lifting Equipment
Reel & Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

TFD Semi-Electric Hydraulic Stacker with overload protection

▲Simple and easy operation.

▲Lifting movement via collapsible foot pedal.

▲Sensitive lowering through sinking valve.

▲Hand push drive.

▲Overload protection via pressure valve.

Specifications:
Model TFD20-85 TFD20-120 TFD40-85 TFD40-120 TFD40-150
Capacity (kg) 200 200 400 400 400
Min. Fork Height (mm) 80 80 80 80 80
Max. Fork Height (mm) 850 1200 850 1200 1500
Forkv Length (mm) 600 600 650 650 650
Adjustable Fork Width (mm) 215-500 215-500 235-500 235-500 235-500
Single Fork Width (mm) 100 100 110 110 110
Dia of Front Wheel (mm) ø75
Dia of Steering Wheel (mm) ø125
Chassis Height (mm) 32.5 32.5 32.5 32.5 32.5
Power Pack Motor (KW) 0.7
Battery (V/Ah) 12/60 12/60 12/70 12/70 12/70
Overall Length (mm) 1020 1020 1100 1100 1100
Overall Width (mm) 560 560 590 590 590
Overall Height (mm) 1080 1435 1060 1410 1710
Option Platform (mm) LP10(610 x 530) LP20(660 x 580)
Net weight (kg) 90 97 105 116 122
Minimum Qty. (pcs) 2 2 2 2 2
