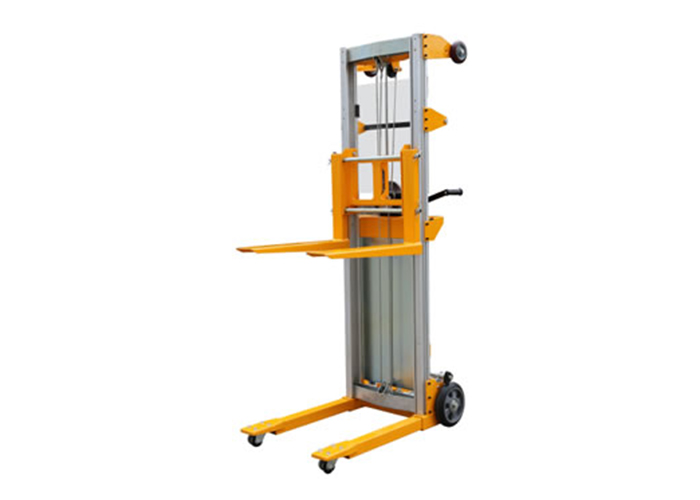

Name:WFH SW Mini Winch Stacker
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
 01 Winch Mini Stacker
 02 Manual Hydraulic Mini stacker
 03 Semi-electric Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Pallet Truck
Pallet Tilter
Hoisting And Lifting Equipment
Reel & Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

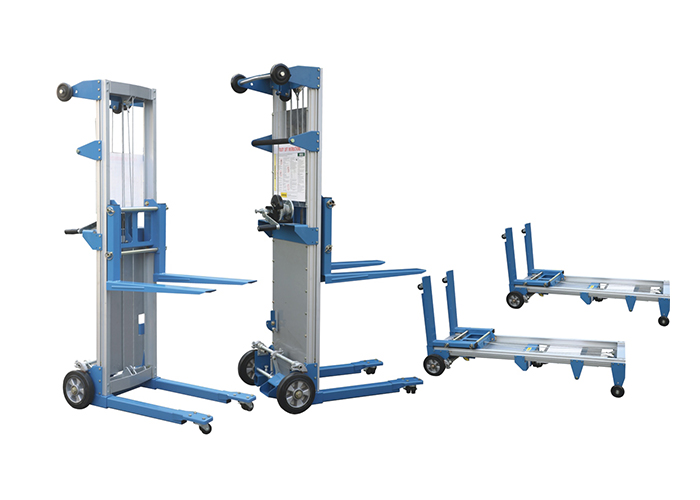

WFH SW Mini Winch Stacker with Light Alumium mast



Disassembling and assembling is easy.
Can fit into smaller spaces when disassembled.
Equipped with wheels on the mast also allow it to be used as a trolley.
Light Alumium mast, easy for handling.
No any hydraulic problem, beasue it’s operated by winch.
The best brake function with special design is obvious.
Conforms to EN1757-1.

Specifications:
Model   WFH-181 SW-181 WFH-277 SW-277
Capacity Q Kg 181 181 227 227
Load center c mm 305 305 305 305
Max.fork height h1 mm 2500 2500 1250 1250
Min.fork height h mm 90 50 90 50
Fork length l mm 570 570 570 750
Fork Width b5 mm 630 630 630 1100
Net Weight Kg 60 66 51 57
