Products – Mini Stacker

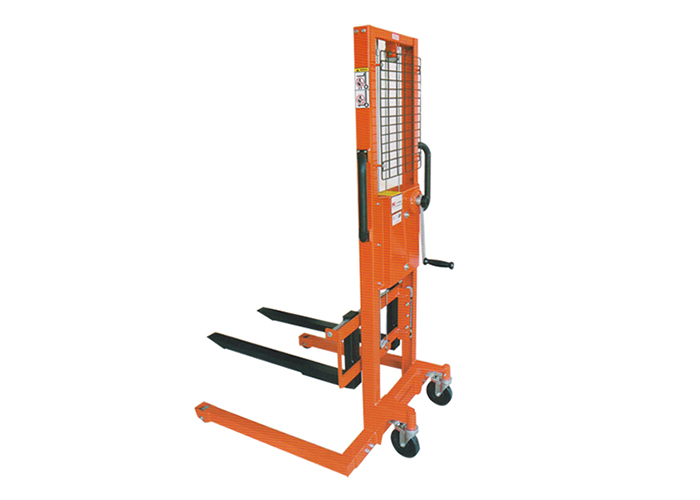

Name:LS350K Mini Winch Stacker
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

LS350K Mini Winch Stacker with safe self-locking

Wirerope or high-strength alloy chain steel transmission, safe self-locking.
Advanced technical, beautiful appearance.




Specifications:
Model   LS350K
Capacity kg 350
Load Centre mm 400
Max.Fork Height mm 1500
Min.Fork Height mm 75
Turn Radios mm 790
Pump Stroke   45
Fork Size(W×L) mm 80×900
Fork Outside Width mm 170~760
Leg Height mm 80
Leg Outside Width mm 860~1270
Front Wheel Diameter mm φ80
Rear Wheel Diameter mm φ150
Net Weight mm 115

Previous:LS350 Mini Winch StackerNext:WFH SW Mini Winch StackerReturn
