Products – Mini Stacker



Name:LS250 LS500 LS1000 Mini Winch Stacker
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

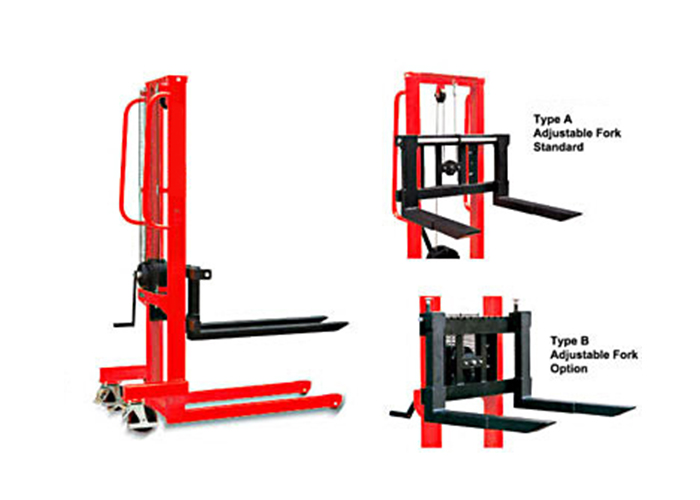

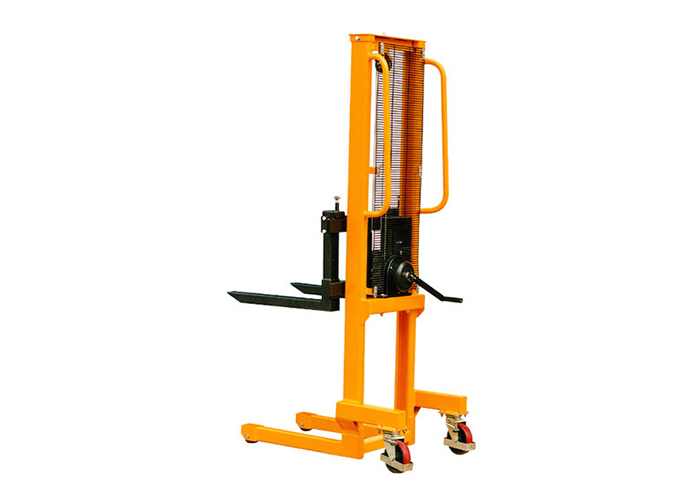

LS250 LS500 LS1000 Mini Winch Stacker with Unique design of winch


▲ Compact and service free design.
▲ Unique design of winch for easier and safe lifting.
▲ Heavy duty “C” section mast.
▲ Adjustable fork width from 160mm to 690mm (LS250, LS500).
▲ Two parking brakes on steering wheels.
▲ Conforms to EN1757-1:2001.

Specifications:
Model LS250 LS500 LS1000
Capacity kg 250 500 1000
Load Centre mm 400 500 575
Max.Fork Height mm 1560 1560 1500
Lowered Fork Height mm 90 90 88
Fork Adjustable Width mm 150-690 160-690 540 Fixed
Fork Width mm 60 70 160
Fork Length mm 800 1000 1150
Effort Force to Rated Load N 100 120 100
Lifting Height per Stroke mm 40 22 9.5
Ground Clearance mm 18 18 24
Min.Turning Radius (outside) mm 1075 1075 1250
Front Load Roller mm Ø80x47 Ø80x47 Ø80x94
Steering Wheel mm Ø150x40 Ø150x40 Ø150x50
Overall Size (LxWxH) mm 1325x725x2030 1325x725x2030 1600x725x1930
Net Weight kg 140 146 182
