Feature:

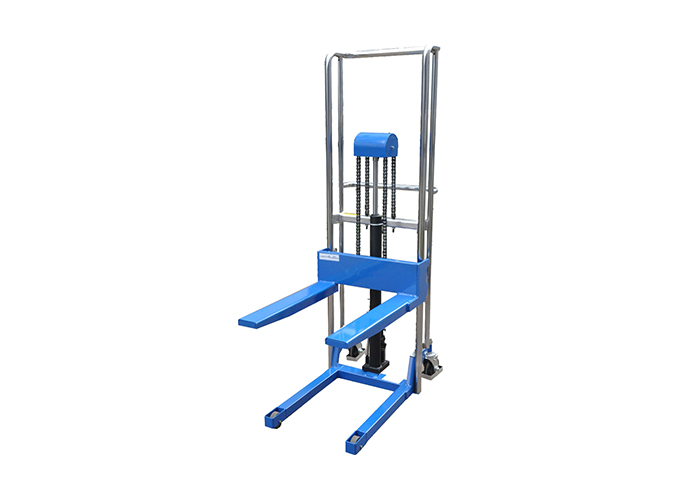

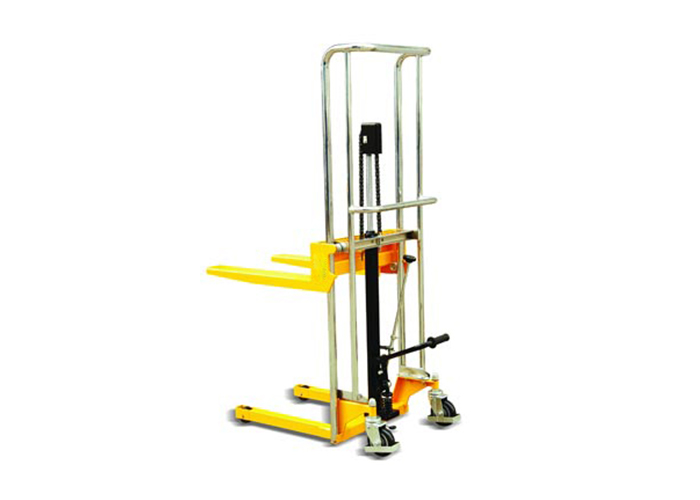

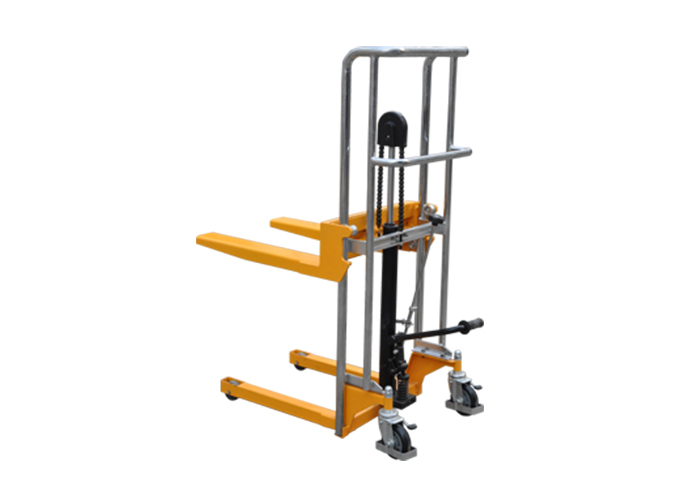

PF Mini Stacker with Fixed Forks

PF Mini Stacker with Fixed Forks is a type of small stacker equipped with fixed forks, typically used for material handling and stacking operations in various industrial settings. This type of stacker is designed for handling pallets and other materials in warehouses, factories, and distribution centers. It is characterized by its compact design, which makes it suitable for use in confined spaces. The fixed forks provide stability and support for lifting and transporting goods, contributing to improved efficiency in material handling processes.

· Robust construction.

· Hard chromium plated frame.

· Effortless Movement.

· Polyurethane rollers with bearing

· No-marking castor as standard.

· Widely used with low leg and various accessories as option.

· The V-Shaped plate is suitable for printing work, flexible package industry

· Robust construction.

· Hard chromium plated frame.

· Effortless Movement.

· Polyurethane rollers with bearing

· No-marking castor as standard.

· Widely used with low leg and various accessories as option.

· The V-Shaped plate is suitable for printing work, flexible package industry.

·Conforms to EN 1757-1.








Specifications:
<
Model (Fixed Fork)
PF2085 PF2120 PF4085 PF4120 PF4150 PF4180
Capacity (kg) 200 400
Max.Fork Height (mm) 850 1200 850 1200 1500 1800
Min.Fork Height (mm) 85 85
Fork Size                                     LxW (mm) 600x100 650x100
Fixed Fork Width PF (mm) 500 550
Load Roller (mm) Ф75 Ф75
Steering Wheel (mm) Ф125 Ф125
Pump strokes to Max.Height
19 26 35 50 63 76
Battery (Ah/V) Dec-60 Dec-70
Overall Height (mm) 1080 1435 1060 1410 1710 1710
Overall Width (mm) 560 590
Overall Length PF/PJ(mm) 1020 1100
Net Weight PF (kg) 55 62 70 76 82 82

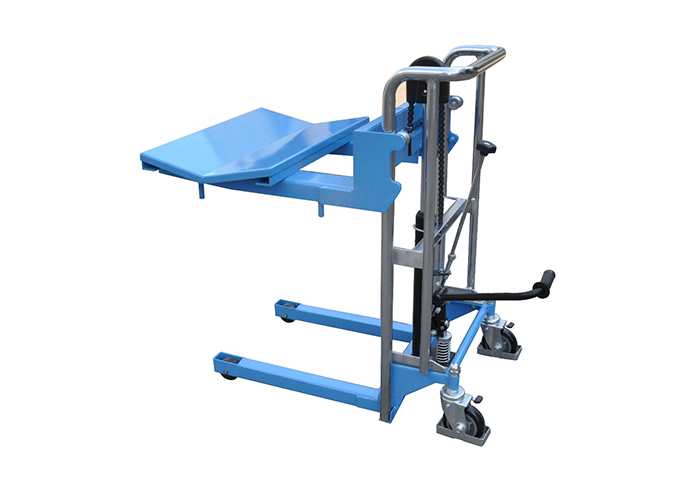

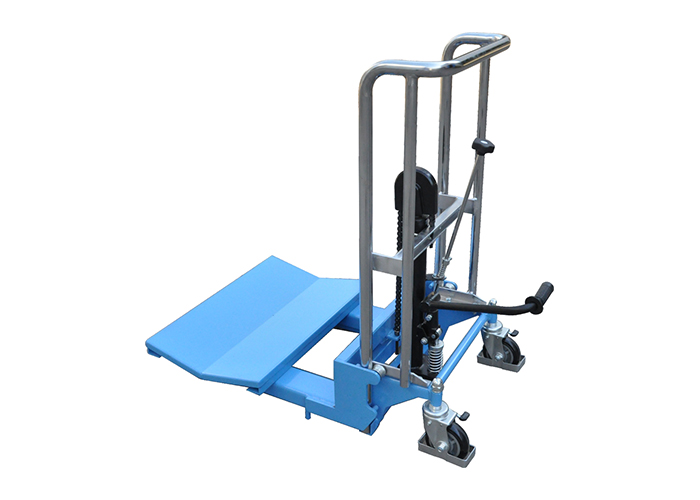

Option Platform
LP10 LP20
Remark






LP10,LP20 is optional accessory with surface coating, the Chromed, stailess steel steel is customerized.
