Feature:

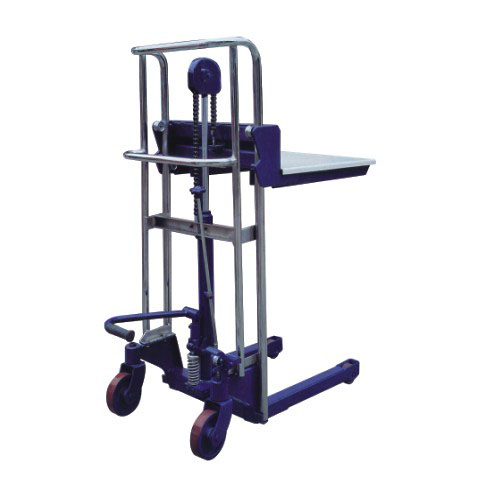

TF Mini Stacker

Our Mini stackers are excellent for everyday light duty work area where loads to be lifted far exceed "the Manual Handling Directive" but do not demand a heavy duty industrial stacker..With capacities of 200kg and 400kg respectively and two lift height options the Mini stackers are suitable for many internal jobs too.· Smooth Operating Twin Speed foot pump

· Positive lifting

· Pressure / Overload Valve

· Smart Chromium plated frame

· Powder Coated platform

· Smooth running Braked steer wheels

· Very manoeuvrable

· CE marked and supplied with certificate of Conformity

· EX STOCK








Specifications:
<
Model
TF20-85 TF20-120 TF40-85 TF40-120 TF40-150
Capacity kg 200 200 400 400 400
Platform Height Max. H(mm) 850 1200 850 1200 1500
Platform Height Min H1(mm) 200 200 200 200 200
Platform Length L1(mm) 600 600 650 650 650
Platform Width W(mm) 500 500 550 550 550
Load Roller (mm) 125 125 150 150 150
Steering Roller (mm) 125 125 150 150 150
Net Weight kg 53 58 72 78 83
