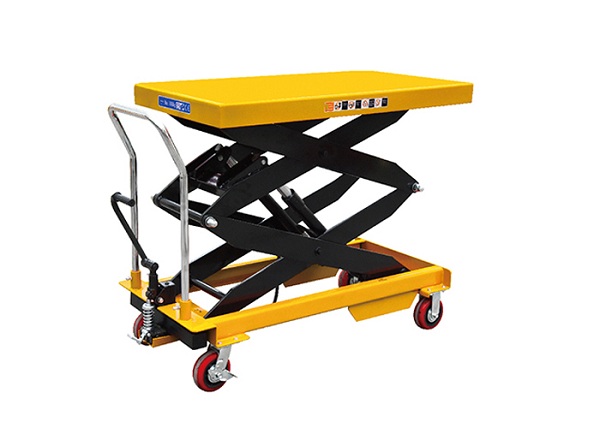

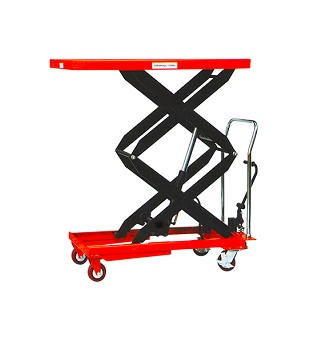

Name:PTS500 PTS800 Double Scissors Hydraulic Table Lift
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1.The double scissor type hand push hydraulic platform car is used for the loading and unloading and transfer of molds and work pieces, the production cooperation of machines, worktables and assembly lines, as well as the storage and sorting operations.

2.Split hydraulic oil cylinder, folding foot lever, foot down switch, two universal wheels with brake, the table can be stopped at any height, the lifting is stable and the movement is light.

Specifications:

Model



PTS500

PTS800

Load Capacity

kg

500

800

Min. Height

mm

360

450

Max. Height

mm

1500

1500

Table Dimension

mm

905*500*50

1200*610*80

Dia.of the wheel

mm

Φ125

Φ125

Net Weight

kg

107

142

Packing Dimensions

mm

1070*520*360

1380*610*460

Load in 20'Container

pc

132

60
