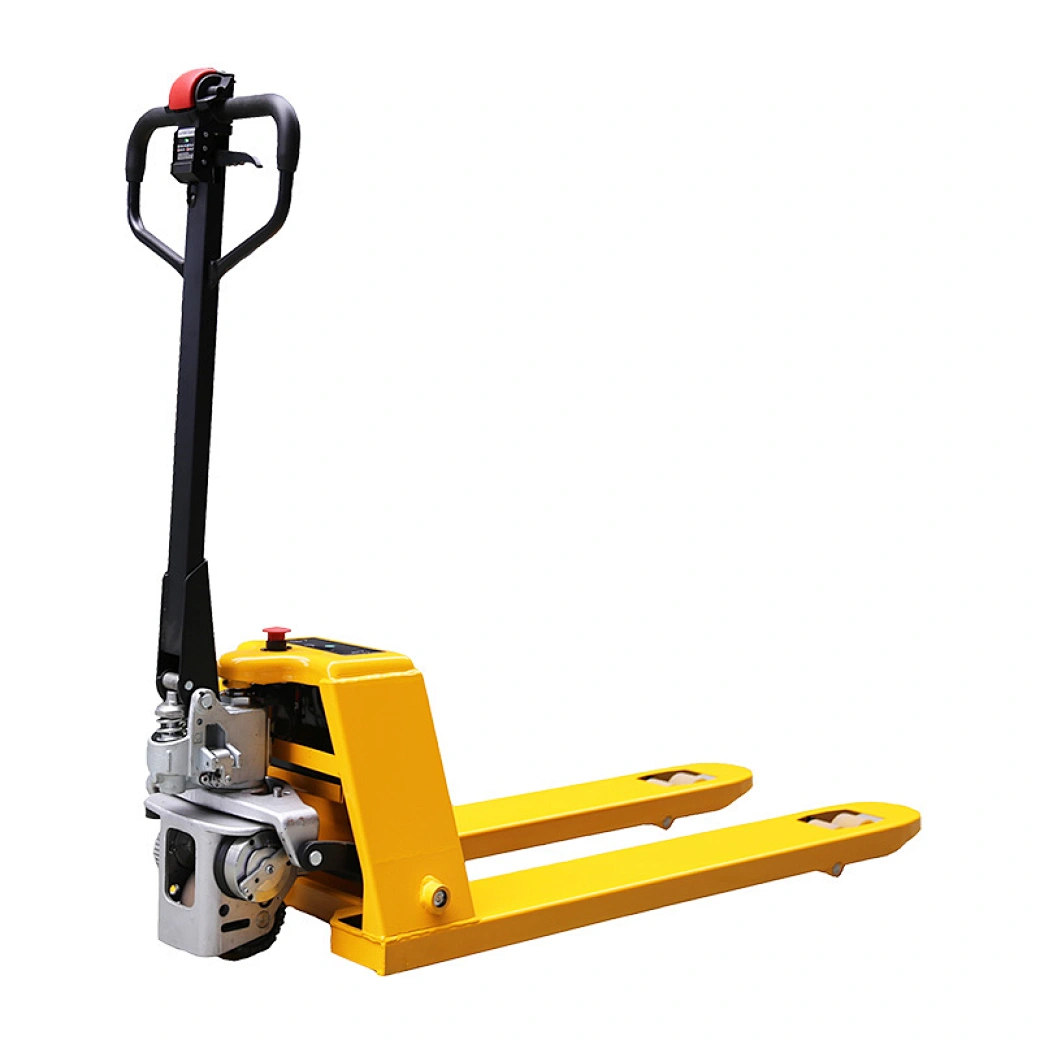

Name:ET15MH Lithium electric pallet jack
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
 Hand Pallet Truck
 High Lift Scissors Pallet Truck
 Mechanical Pallet Truck
 Lithium-lon battery operated pallet truck (semi-electric type)
 Lithium Battery Operated Pallet Truck
 GEL Battery operated Pallet Truck
 Rough Terrain Electric Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger
Spare Parts

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Name:Lithium electric pallet jack

Features of Lithium electric pallet jack:

1. Integrated operation handle, easy to operate;

2. The  Lithium electric pallet jack body is small, light weight, and can work easily in smaller warehouses or other holes;

3. Lithium electric pallet jack is Equipped with efficient DC traction motor, the speed of operation can be controlled, and heavy goods can be easily handled;

4. The hydraulic system adopts the integral hydraulic pump station, which can easily lift the material by pressing the lift button on the control handle;

5. Lithium electric pallet jack is Equipped with lithium battery, higher environmental protection

Specifications:
Model number
Lithium electric pallet jack
ET15MH
Lithium electric pallet jack
ET15MH-P
Rated load kg 1500 1500
Load center distance mm 600 600
Vehicle type C Walking type
Maximum lifting height mm 200 200
The fork is wide outside mm 540/680 540/680
Minimum fork height mm 85 85
Width of single fork mm 163 163
Fork length mm 1150/1220 1150/1220
Minimum ground height mm 30 30
Full load maximum travel speed km/h 4 4
Maximum no-load speed km/h 4.5 4.5
Full load maximum gradient 2% 2%
Maximum no-load gradient 20% 20%
Minimum turning radius mm 1320/1390 1340/1410
Vehicle length mm 1540/1610 1546/1616
Vehicle width mm 540/680 540/680
vehicle height mm 1250 1250
Wheelbase mm 1170/1240 1202/1272
Lithium battery capacity AH/24V 20 20
Controller PG PG
Travel motor power w 750 750
Power of lifting motor w / 450
Self-weight kg 125 135
