Feature:

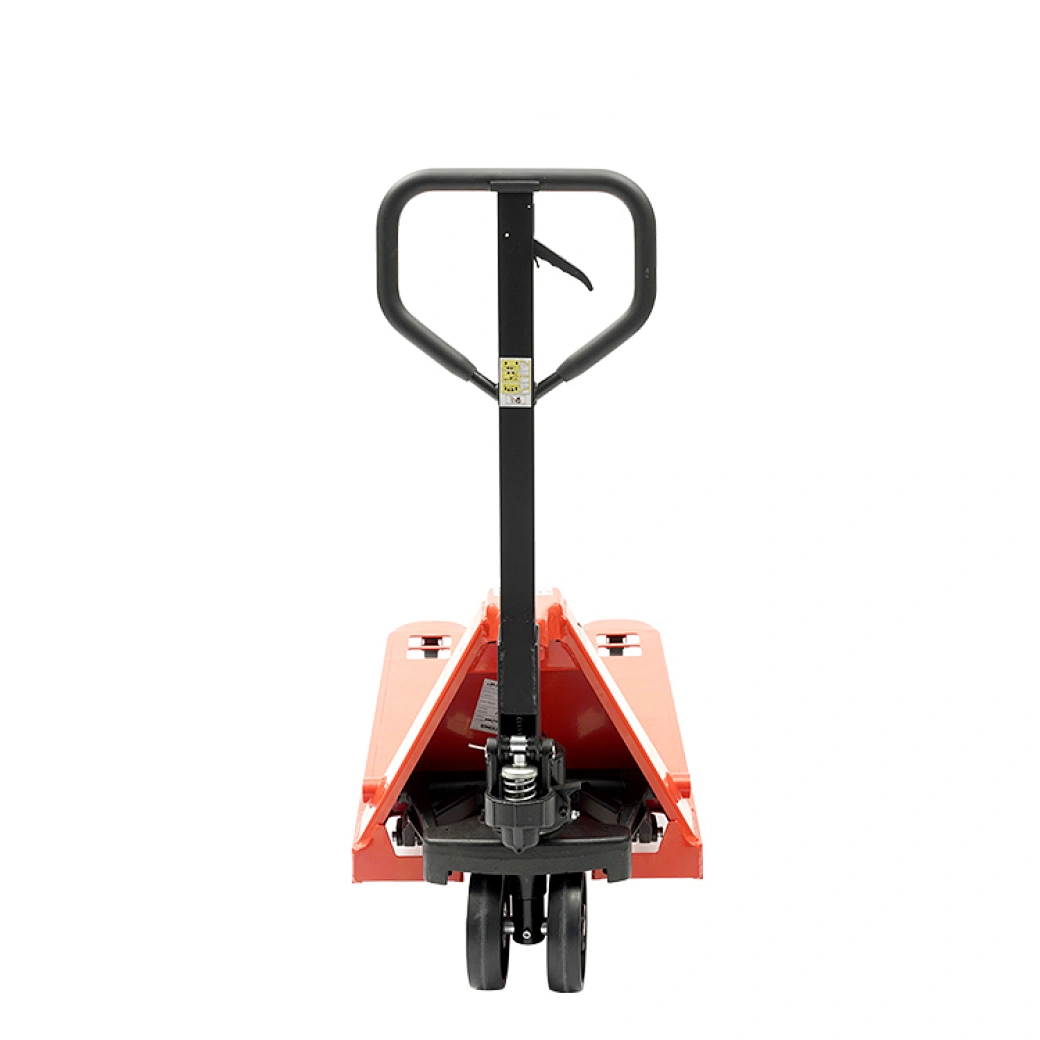

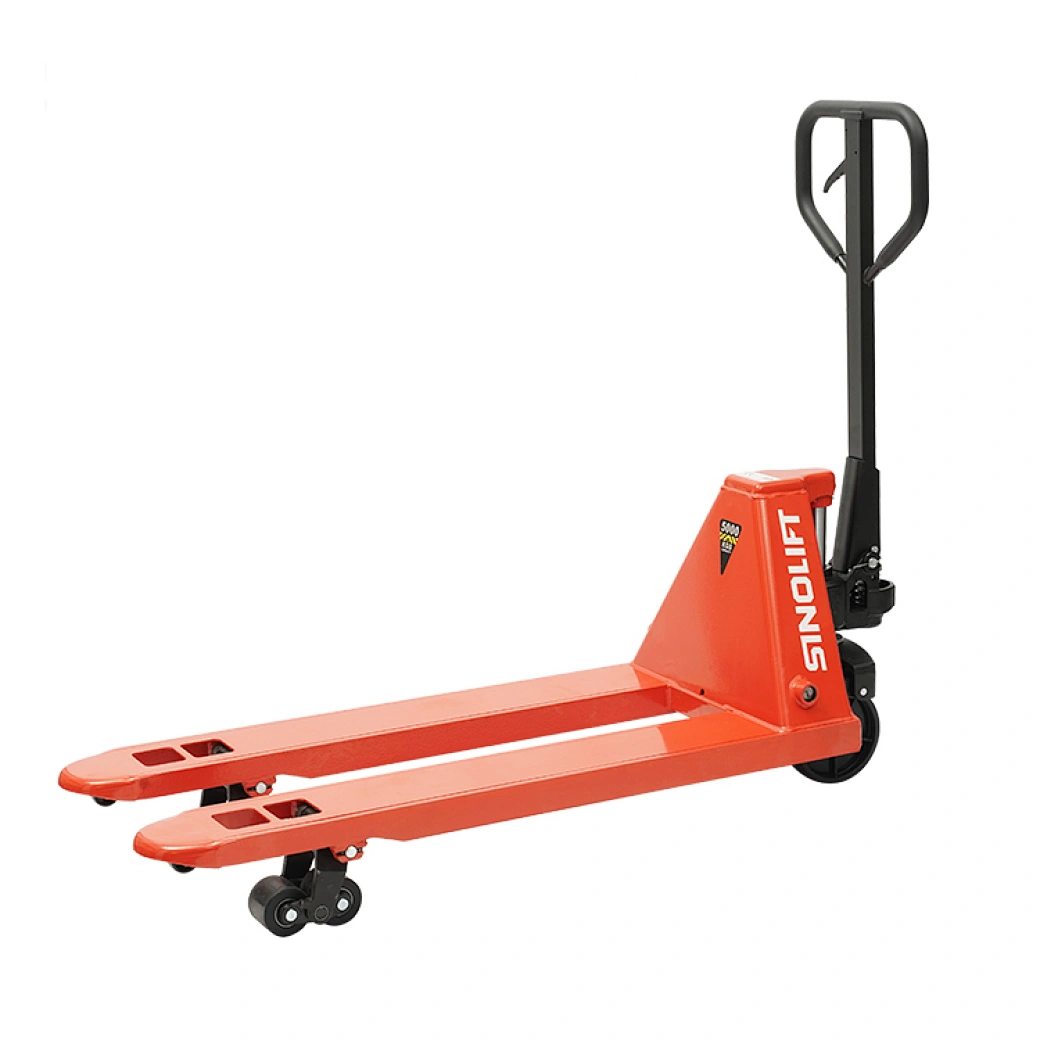

CBK Series Heavy Duty Hand Pallet Jack – 5000kg Capacity

The CBK Series Heavy Duty Hand Pallet Jack is a high-performance manual handling solution designed to move heavy palletized loads with ease. With a load capacity of up to 5000 kg, it’s built for tough industrial environments where strength, durability, and efficiency matter most.

Key Features:

  • Robust 5000 kg load capacity for heavy-duty applications

  • Multiple model options with varying fork heights and widths to meet different operational needs

  • Ergonomic teardrop handle and smooth control lever ensure operator comfort and precise maneuverability

  • Highly portable and easy to use – a must-have tool for manufacturing, warehousing, and retail settings

  • Built for consistent performance and long-term reliability

Whether in manufacturing, distribution, or retail, SINOLIFT’s CBK Series offers the right solution for your pallet handling demands.

Specifications:
Model CBK50-550 CBK50-685
Rated Capacity (kg) 5000 5000
Width over forks (mm) 550 685
Width inside forks (mm) 180 325
Lifting Height (mm) 115 115
Fork length (mm) 1100 1200
Ground Clearance (mm) 90 90
Max. lift height (mm) 200 200
Steering Wheel (mm) Ø180×50 Ø180×50
Load Wheel (mm) Ø80×70 Ø80×70
Service weight (kg) 125-130 125-130
