Feature:

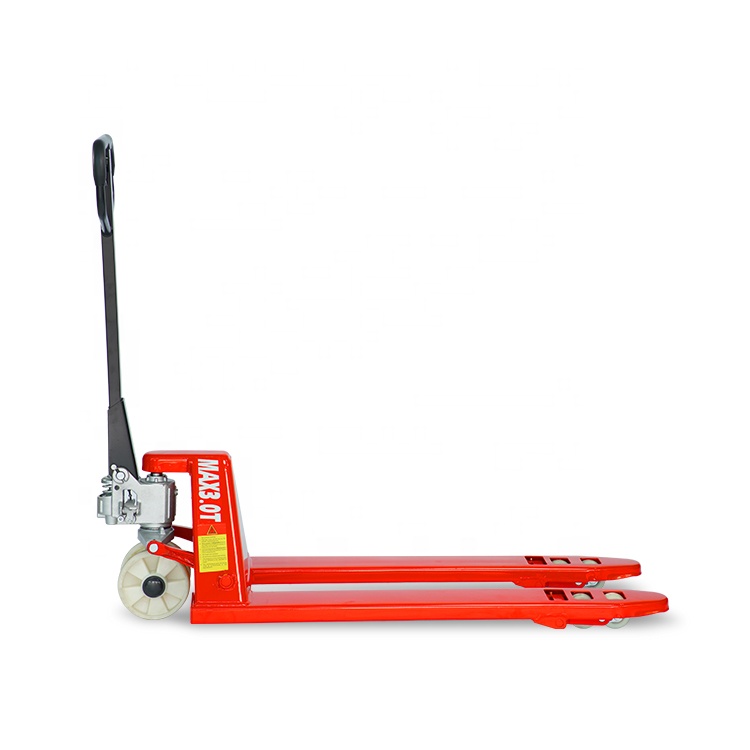

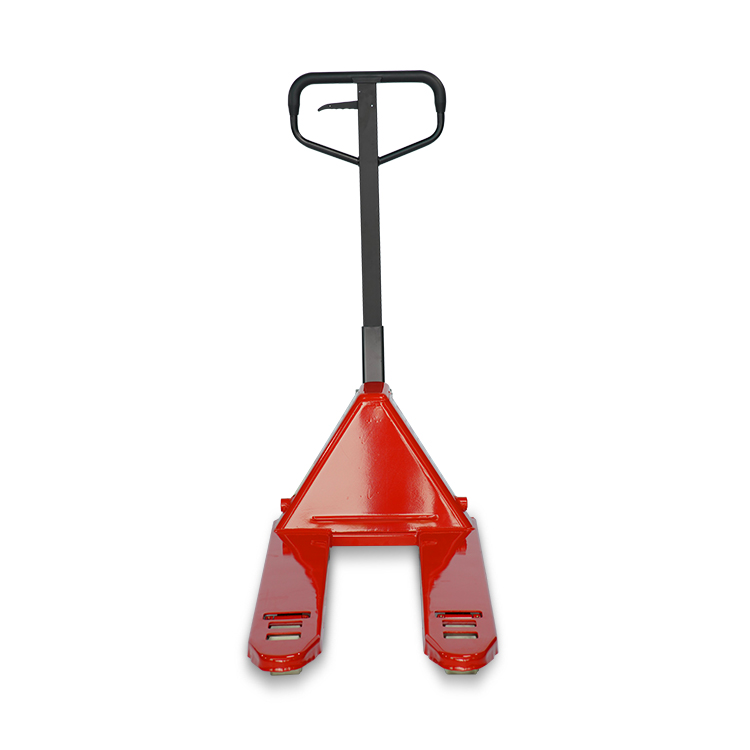

NF HAND PALLET TRUCK


1,500/2,500/3,000/5,000 KG LOAD CAPACITY

3,300/5,500/6,600/11,000 LB LOAD CAPACITY


Exceptional Valve

NF hand pallet trucks thrive in a variety of applications, being used by operators of all experience levels.

Maneuverable and easy-to-us, these hand pallet trucks are a dependable source for moving materials in your application.


Features

  1. Reinforced Ergonomic Handle
  2. Polyurethane/Nylon/Rubber Steer Wheels.
  3. Polyurethane/Nylon/Iron Load Rollers
  4. Entry/Exit Roller System.
  5. 12 Grease Zerks at the Pivot Points
Specifications:

NF Specifications
Standard Model
Model Rated
Capacity
Fork
Width
Fork
Length
Min. Fork
Height
Max.Fork
Height
Wheel Service
Weight
Q W L H1 H2 Steering
Wheel A
Single
Load Wheel B
Tandem Load
Wheel B
(kg) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kg)
NF25-510 2500 520 1070 80 200 Ø180×50 Ø78×100 Ø78×70 62
NF25-712 685 1220 70
NF30-510 3000 520 1070 80 200 Ø180×50 Ø78×100 Ø78×70 70
NF30-712 685 1220 75
Low Profile
Model Rated
Capacity
Fork
Width
Fork
Length
Min.
Fork Height
Max.Fork
Height
Wheel Service
Weight
Q W L H1 H2 Steering
Wheel A
Single Load
Wheel B
Tandem Load
Wheel B
(kg) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kg)
NFL25-510 2500 520 1080 65 160 Ø180X62 Ø65X100 Ø65X70 62
NFL25-712 685 1230 70
