Products – Pallet Truck

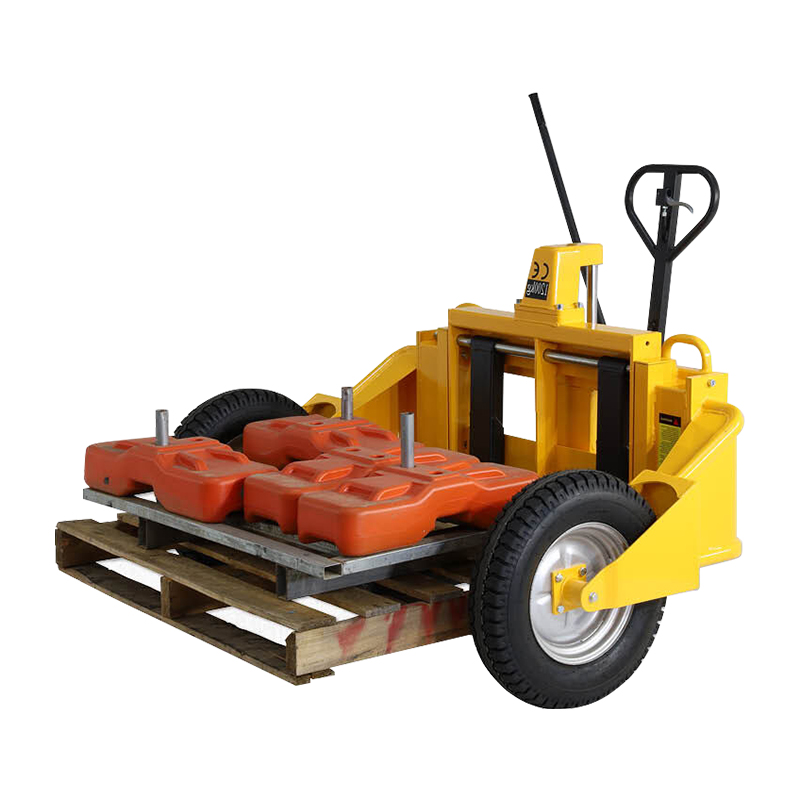

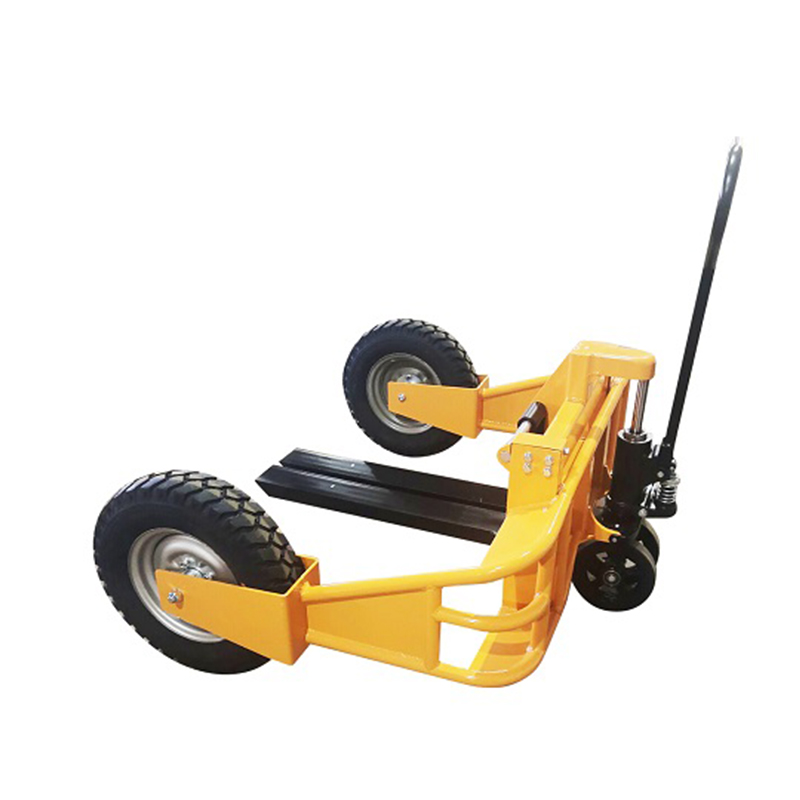

Name:RP1000A / RP1250A All-Terrain Manual Hydraulic Pallet Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
 Hand Pallet Truck
 High Lift Scissors Pallet Truck
 Mechanical Pallet Truck
 Lithium Battery Operated Pallet Truck
 Acid Battery Operated Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger
Spare Parts

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Key Features

1.  Heavy Duty Performance

     Rated load capacity up to 1,250kg

     Reinforced structure designed for rough and uneven surfaces

     Construction grade steel reinforced chassis



2.  Ergonomic Design Features

     Biomechanically optimized lever system

     Balanced weight distribution enables one handed steering

     Adjustable handle height accommodates operators of different heights



3.  All Terrain Adaptability

     IP54 certified dustproof and waterproof construction

     Suitable for outdoor environments (construction sites, nurseries, warehouses)



4. Smart Adjustment System

     Tool free fork width adjustment (76 229mm range)

     Patented quick lock mechanism enables width adjustment in under 10 seconds

     Compatible with EUR, US, and non standard pallets

Specifications:
Specification Unit RP1000A RP1250A
Rated Capacity  kg 1000 1250
Max. Fork Height  h1 mm 240 240
Min. Fork Height  h mm 70 70
Fork Length  l mm 800 (860) 800 (860)
Load Center  C mm 400 (430) 400 (430)
Adjustable Fork Width  mm 216-680 256-680
Individual Fork Width   b mm 100 120
Distance inside the Front Wheel  B1 mm 1230 1230
Axle Distance between front Wheel and rear steering wheel  Y mm 973 973
Front Load Wheel (Dia.×Wid)  mm Ø568×145 Ø568×145
Rear Steering Wheel (Dia.×Wid)  mm Ø250 Ø250
Turn Radius  Wa mm 1500 1500
Overall Size (L×W×H)  mm 1406×1670×1280 1406×1670×1280
Net Weight  kg 210 238
Previous:CBY-P Series Hydraulic Pallet Truck with Hand BrakeNext:RP1500B All-Terrain Heavy-Duty Manual Pallet TruckReturn
