Products – Pallet Truck

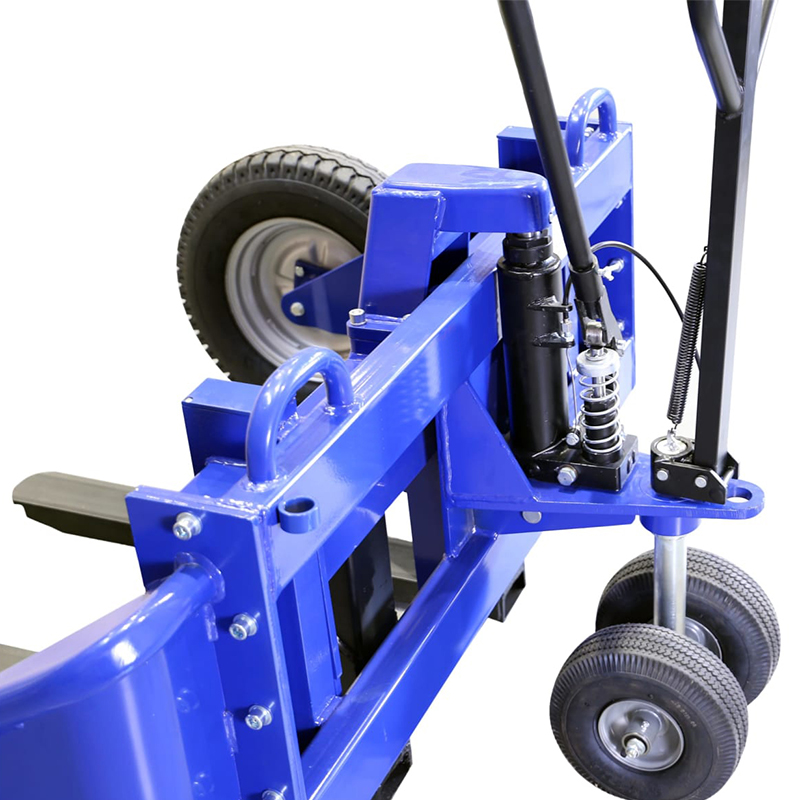

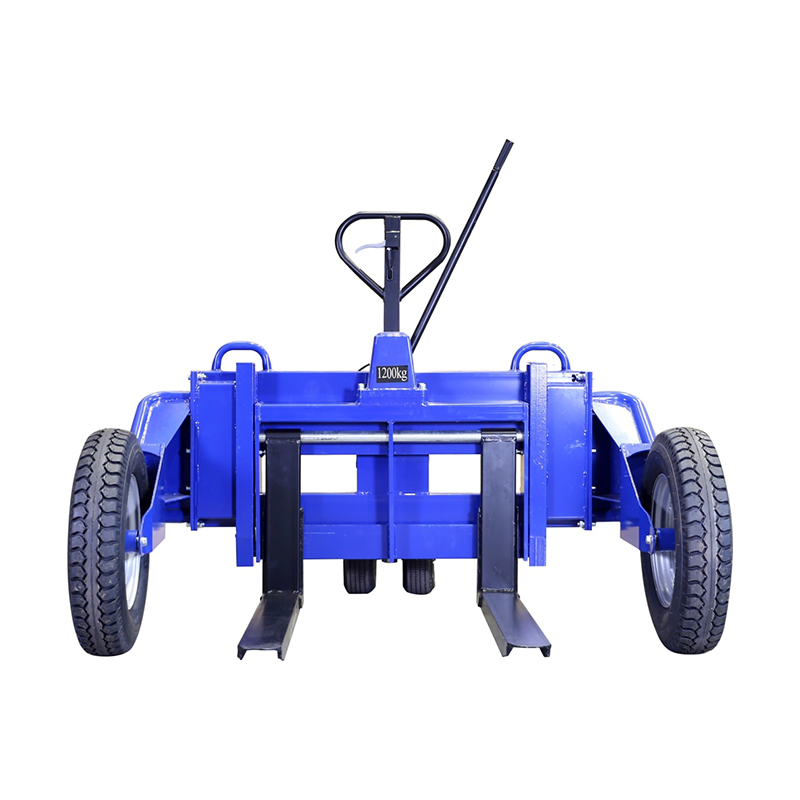

Name:RTT12 Mountain type pallet truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
 Hand Pallet Truck
 High Lift Scissors Pallet Truck
 Mechanical Pallet Truck
 Lithium Battery Operated Pallet Truck
 Acid Battery Operated Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

The frame is carefully made of high-strength steel plate and seamless steel pipe, with a load capacity of 1200KG/2640KG, large bearing capacity, ergonomic design, achieving labor-saving effect, and improving work efficiency

Quality is safer and more durable, only for better service for you

1. Strictly selected sturdy steel plate

2. Flexible steering, small turning radius

3. Comfortable handle Handle control valve

4. The whole vehicle is painted with high temperature paint

5. Applicable to multiple scenarios

6. Integrated sealed oil cylinder

7. High-strength frame, strong bearing capacity

8. Adjustable mobile fork

9. High load pneumatic wheel



Specifications:
Item Unit Value
Model RTT12
Rated Load kg 1200/2640
Load Center kg 450
Fork Lowered Height mm 63
Fork Raised Height mm 233
Fork Length mm 860
Fork Width mm 228-735
Single Fork Size mm 100*50
Available Width Between Legs mm 1277
Wheelbase mm 973
Turning Radius mm 1500
Overall Length mm 1375
Overall Width mm 1605
Overall Height mm 1200
Load Wheel mm Ø550X132
Steering Wheel mm Ø265X80
Net Weight kg 225/495
Previous:NPHS Stainless Steel Scissor Lift TruckNext:MX Mechanic pallet truckReturn
