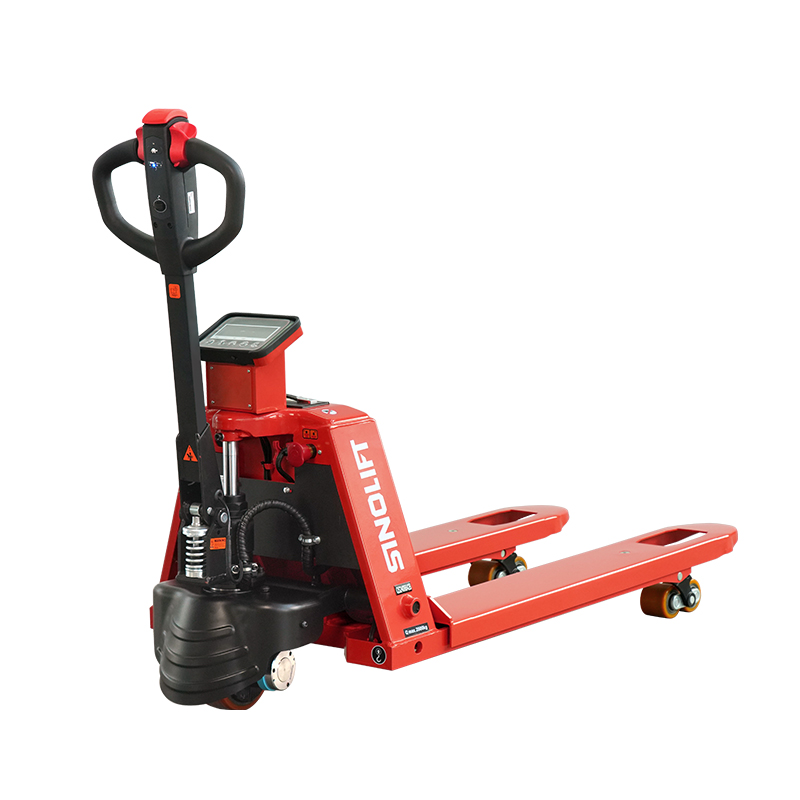

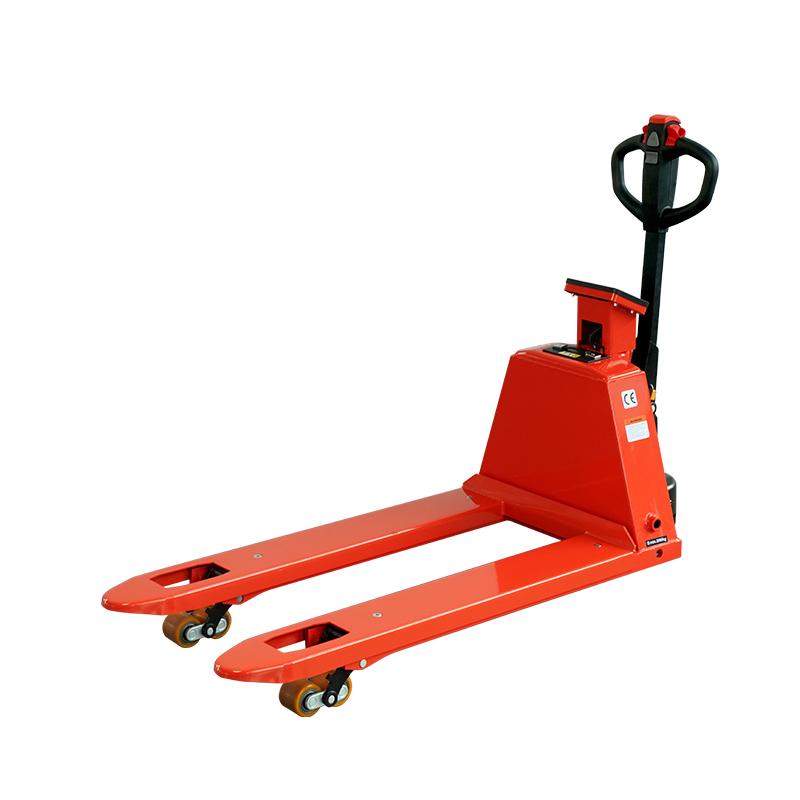

Name:EPT20ES Lithium Battery Operated Pallet Truck With Scale
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
 Hand Pallet Truck
 High Lift Scissors Pallet Truck
 Mechanical Pallet Truck
 Lithium Battery Operated Pallet Truck
 Acid Battery Operated Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1. With high-quality batteries ensure extended operation time (slide-out lithium-ion battery, high-capacity lithium-ion battery), allowing for continuous work for 3 to 6 hours.

2. Long continuous operation time (upgraded battery, CE certified)

3. Lithium iron phosphate battery, 48V/15Ah. The lithium iron phosphate battery is easy to replace, has low energy consumption, provides longer working time, and ensures more stable and safer use

4. Reinforced forks, upgraded with manganese steel, offer higher strength.

5. Built-in 4 sensors, 4 high-precision sensors for 0.1KG special vehicle pressure feedback is more sensitive, providing solid guarantee for accurate weighing

Specifications:
Manufacturer SINOLIFT
Model EPT20ES (with scale)
Power Type Lithium Battery
Type of Operation Pedestrian
Load capacity/Rated load q kg 2000
Load Center Distance c mm 600
Alex centre to Fork Face x mm 840 (910)
Wheelbase y mm 1185 (1225)
Total Weight (with battery) kg 168 (190)
Tyre Type Polyurethane
Tyre Size (Load Wheel) Tandem mm φ80x70 (88mm)
Tyre Size (Load Wheel) Single φ80x93 (88mm)
Tyre Size (Drive Wheel) mm φ190x170
Wheels Quantity, front/rear (x Driving Wheels) 4/1x+2
Track Width, Front, Driving Side mm 460
Track Width, Rear, Loading Side mm 400 (520)
Lifting Height b10 mm 198
Height of Tiller Arm in Driving Position, Min.-Max. b11 mm 800-1240
Lowered Height h3 mm 88
Overall Length h14 mm 1540 (1610)
Length to Fork Face h13 mm 420
Overall Width l1 mm 560 (690)
Fork Dimension l2 mm 50x180x1150 (1220)
Fork Spread Width b1 mm 560/680
Ground Clearance at Center of Wheelbase (Min) s/e/l mm 30
Aisle Width for Pallets 1000x1200 Crossways b5 mm 1790
Aisle Width for Pallets 800x1200 Crossways m2 mm 1740
Turning Radius Ast mm 1350
Traveling Speed (Laden/Unladen) Ast km/h 4.5/4
Lifting Speed (Laden/Unladen) Wa mm/s 22/17
Lowering Speed (Laden/Unladen) mm/s 26/30
Max.Gradient Performance (Laden/Unladen) % 5/7
Service Brake Type Electromagnetic
Driving Motor Rating (DC) S2 60min kw 0.75
Lifting Motor Rating S3 15% kw 0.5
Battery Type Li-ion
Battery Voltage/Capacity K5 V/Ah 24/25
Battery Weight kg 6.3
Charger V/A 48/16
Controller Model DC CURTIS
Steering Type Mechanical
Sound level at driver's ear according to EN 12 053 dB (A) 70
