Products – Mini Pallet Stacker

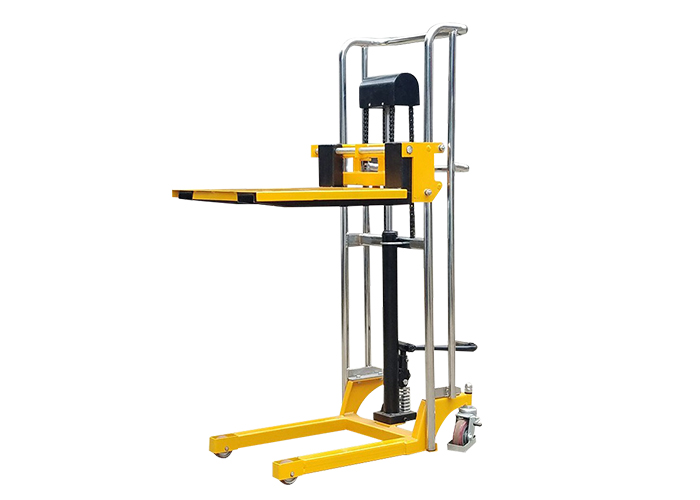

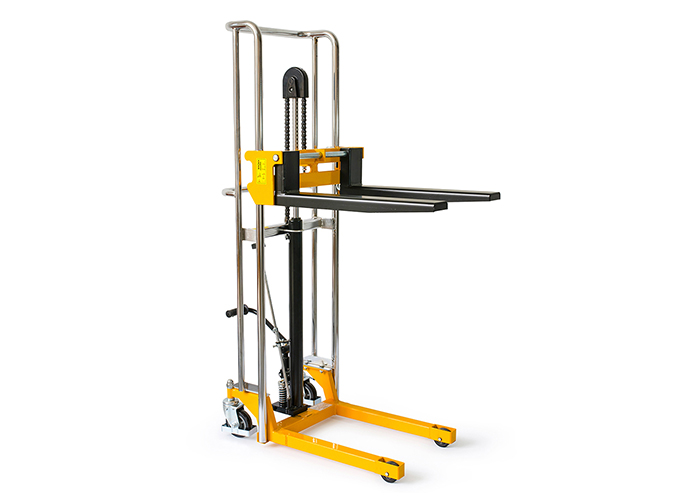

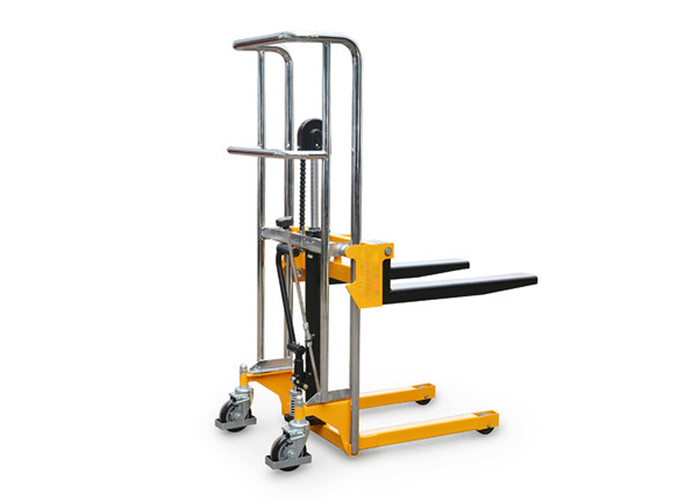

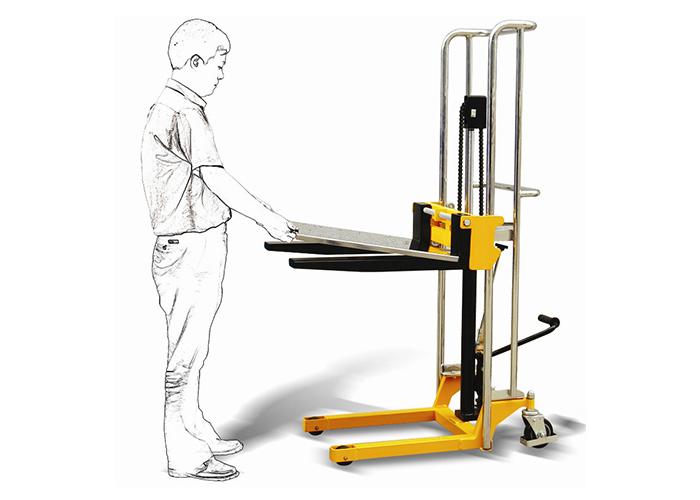

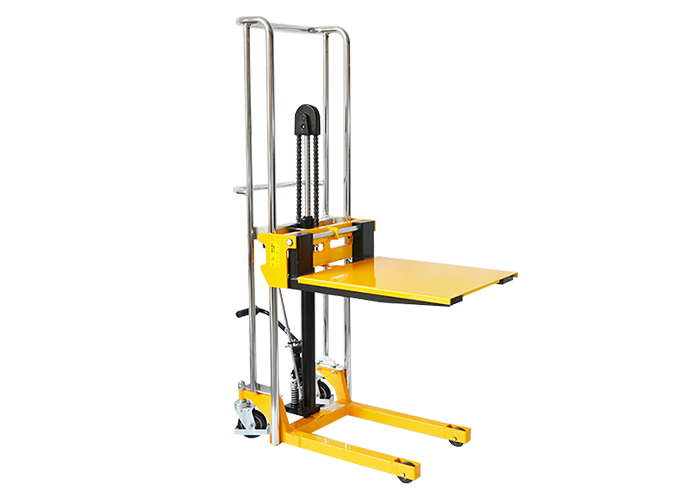

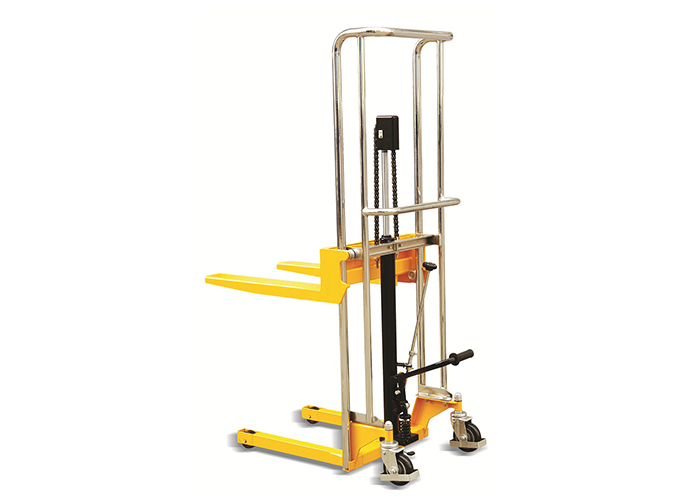

Name:PJ+LP Mini Stacker with Removable Platform
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
 Mini Manual Hydraulic Stacker
 Mini Manual Winch Stacker
 Semi-Electric Hydraulic Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

PJ+LP Mini Stacker with Removable Platform

- High-quality oil cylinder and imported seals greatly improve sealing performance and reduce maintenance costs.

- The structure is scientifically reasonable, and the operation is light and flexible.
- The gantry adopts high-quality cold-drawn seamless steel pipe, undergoes multiple chrome plating processes, and is durable and rust-resistant.

- Compliant with European standard EN1757-1:2001.

Specifications:
<
Model
PF4085 PF4120 PF4150 PF4150
Rated deadweight kg 400 400 400 400
Load center mm 350 350 350 350
Minimum/maximum fork height mm 85/850 85/1200 85/1500 85/1500
Fork length mm 650 650 650 650
Fork width (PF series
Column)
mm 550 550 550 550
Fork width (PJ series
Column)
mm 235-500 235-500 235-500 235-500
Front wheel specification (PU wheel) mm Ф125×40
Rear wheel specification (PU wheel) mm Ф75×30
Vehicle length mm 1040 1040 1040 1040
Full car width mm 590 590 590 590
Vehicle height mm 1060 1410 1710 1710
Minimum turning radius mm 930 930 930 930
Net weight (PF series) kg 70 76 82 82
Net weight (PF series) kg 75 81 85 85
Platform options (long
x width)

LP20(660×580)
