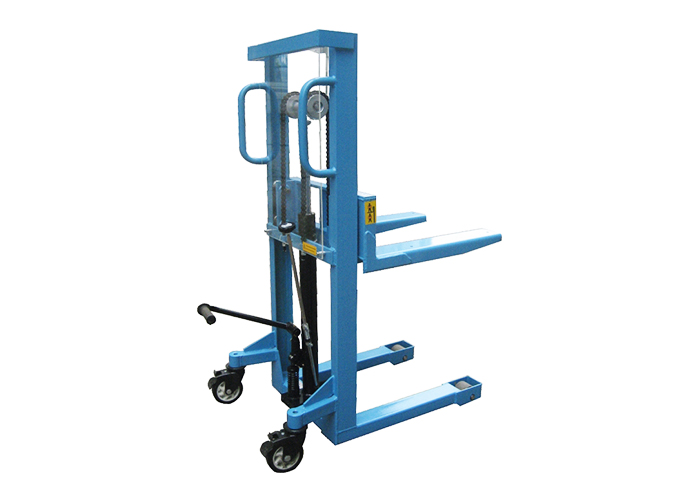

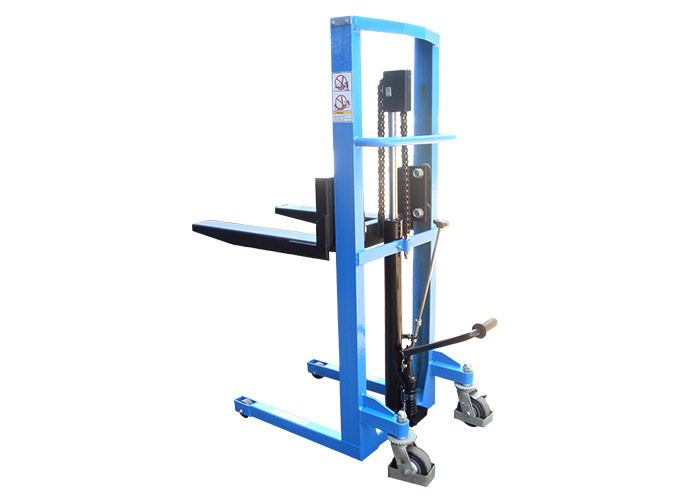

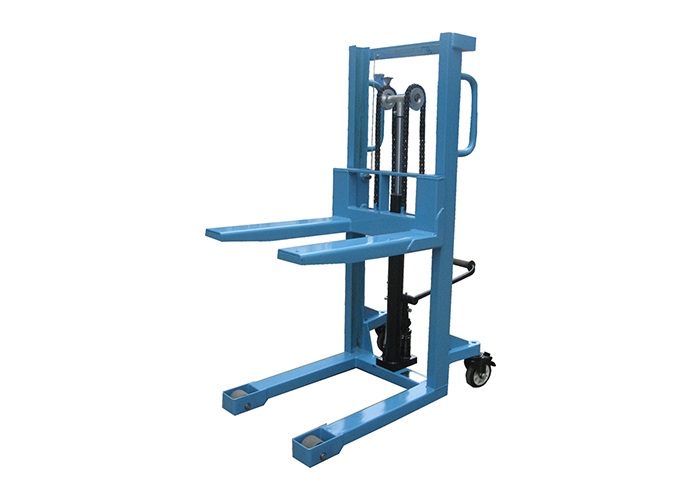

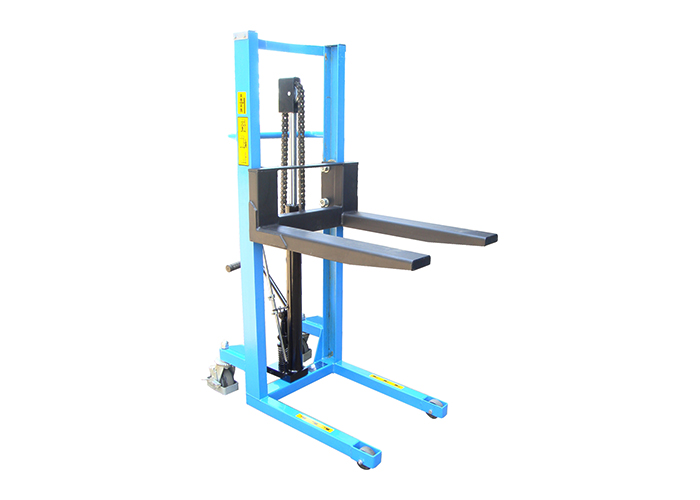

Name：PFZ6150 PFZ8150 Light Duty Hydraulic Stacker
Click to view larger

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
 Mini Manual Hydraulic Stacker
 Mini Manual Winch Stacker
 Semi-Electric Hydraulic Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：

PF PJ PS Light Duty Hydraulic Stacker

  • Hard chromium plated frame.
  • Effortless Movement.
  • Polyurethane rollers with bearing
  • No-marking castor as standard.
  • Widely used with low leg and various accessories as option.
  • The V-Shaped plate is suitable for printing work, flexible package industry.
  • Conforms to EN 1757-1

Specifications：
Model (Fixed Fork) PF2085 PF2120 PF4085 PF4120 PF4150 PF4180
Model (Adjustable Fork) PJ2085 PJ2120 PJ4085 PJ4120 PJ4150 PJ4180
Capacity (kg) 200 400
Max.Fork Height (mm) 850 1200 850 1200 1500 1800
Min.Fork Height (mm) 85 85
Fork Size                                     LxW (mm) 600x100 650x100
Fixed Fork Width PF (mm) 500 550
Adjustable Fork Width PJ (mm) 215-500 235-500
Load Roller (mm) Ф75 Ф75
Steering Wheel (mm) Ф125 Ф125
Pump strokes to Max.Height 19 26 35 50 63 76
Battery (Ah/V) Dec-60 Dec-70
Overall Height (mm) 1080 1435 1060 1410 1710 1710
Overall Width (mm) 560 590
Overall Length PF/PJ(mm) 1020 1100
Net Weight PF (kg) 55 62 70 76 82 82
PJ (kg) 58 65 75 81 85 85
Option Platform LP10 LP20
Model Platform PS2085 PS2120 PS4085 PS4120 PS4150 PS4180
Low Platform PS2085L PS2120L PS4085L PS4120L PS4150L PS4180L
Capacity (kg) 200 200 400 400 400 200~400
Max. Platform Height H (mm) 965 1315 965 1315 1615 1915
850 1200 850 1200 1500 1800
Min. Platform Height H1 (mm) 200 200 200 200 200 200
85(L) 85(L) 85(L) 85(L) 85(L) 85(L)
Platform Length L1 (mm) 600 600 650 650 650 650
Paltform Width W (mm) 500 500 550 550 550 550
Front Load Wheel D (mm) Ø125 Ø125 Ø150 Ø150 Ø150 Ø150
Ø75(L) Ø75(L) Ø75(L) Ø75(L) Ø75(L) Ø75(L)
Rear Steering Wheel d (mm) Ø125 Ø125 Ø150 Ø150 Ø150 Ø150
Ø125(L) Ø125(L) Ø125(L) Ø125(L) Ø125(L) Ø125(L)
Pump Strokes to Max. Height 14 21 30 45 58 71
Net Weight(PS/EP) (kg) 46 51 64 70 75 85
Noise-free Castor O O O O O O
Ovrall Size LxWxH  (mm) 940x520x960 940x520x1310 1040x570x1090 1040x570x1440 1040x570x1740 1040x570x1940
Note: Specification and materials are subject to change without notice.
