Products – Mini Pallet Stacker

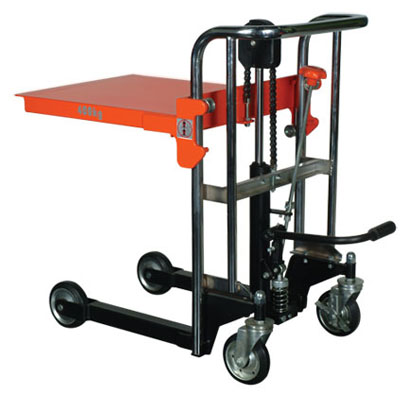

Name:FP Platform Mini Stacker
Click to view larger

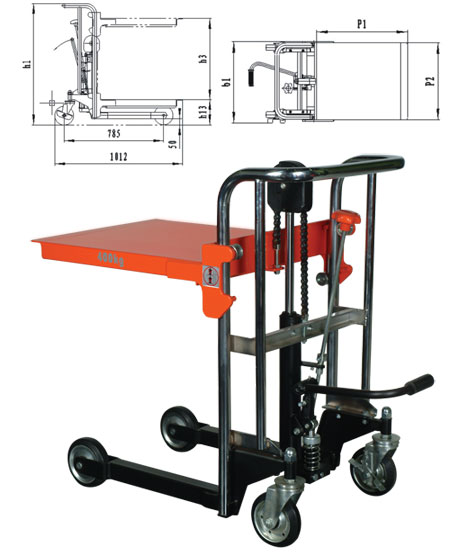

Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
 Mini Manual Hydraulic Stacker
 Mini Manual Winch Stacker
 Semi-Electric Hydraulic Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

FP Platform Mini Stacker

  • FP0412/FP0485/FP0415
  • The unique design combine both the lifting and stacking function.
  • Enables one person to handle difficult lifting and moving jobs.
  • Collapsible foot pedal ensures lifting movement comfortably and smoothly.
  • Equipped with a overload protection valve.
  • Hand push drive
  • Hard chromium plated frame.
  • Two frame rollers and two steering rollers ensures a stable and safe operation
  • Conforms to En1757-1


Specifications:
<
Model
FP0485 FP0412 FP0415
Capacity Q kg 400 400 400
Max. height h1 mm 980 1330 1630
Lifting height(h3) mm 650 1000 1300
Min.platform height h13 mm 200 200 200
Max.platform height h3+h13 mm 850 1200 1500
Max.Width mm 590 590 590
Platform length mm 650 650 650
Platform width mm 550 550 550
Rear roller mm Φ150x40 Φ150x40 Φ150x40
Load roller mm Φ150x45 Φ150x45 Φ150x45
Weight kg 70 76 86
Previous:PS Platform Mini StackerNext:TF Mini StackerReturn
