Products – Mini Pallet Stacker

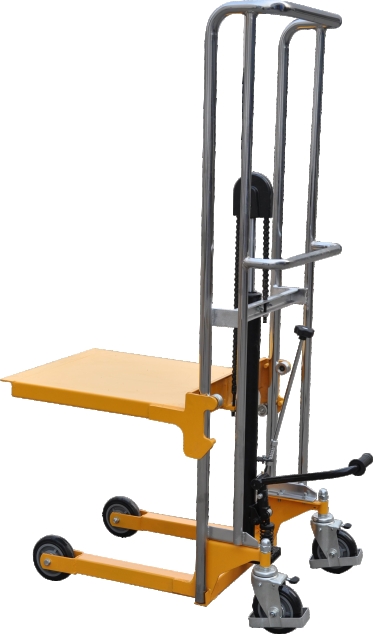

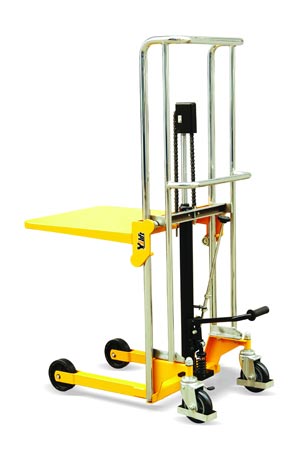

Name：PS Platform Mini Stacker
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
 Mini Manual Hydraulic Stacker
 Mini Manual Winch Stacker
 Semi-Electric Hydraulic Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：

Ps Platform Mini Stacker

Special design combines lifting, transporting and stacking functions togetherRobust construction.

· Hard chromium plated frame.

· Effortless Movement.

· Polyurethane rollers with bearing

· No-marking castor as standard. Silent castor is optional.

· Widely used with low platform and various accessories as option.

· Design of double chain and big wheels can be stable and reliable.

· Conforms to EN 1757-1.






Specifications：
<
Model Platform PS2085 PS2120 PS4085 PS4120 PS4150 PS4180
Low Platform PS2085L PS2120L PS4085L PS4120L PS4150L PS4180L
Capacity (kg) 200 200 400 400 400 200~400
Max. Platform Height H (mm) 965 1315 965 1315 1615 1915
850 1200 850 1200 1500 1800
Min. Platform Height H1 (mm) 200 200 200 200 200 200
85(L) 85(L) 85(L) 85(L) 85(L) 85(L)
Platform Length L1 (mm) 600 600 650 650 650 650
Paltform Width W (mm) 500 500 550 550 550 550
Front Load Wheel D (mm) Ø125 Ø125 Ø150 Ø150 Ø150 Ø150
Ø75(L) Ø75(L) Ø75(L) Ø75(L) Ø75(L) Ø75(L)
Rear Steering Wheel d (mm) Ø125 Ø125 Ø150 Ø150 Ø150 Ø150
Ø125(L) Ø125(L) Ø125(L) Ø125(L) Ø125(L) Ø125(L)
Pump Strokes to Max. Height
14 21 30 45 58 71
Net Weight(PS/EP) (kg) 46 51 64 70 75 85
Noise-free Castor
O O O O O O
Ovrall Size LxWxH (mm) 940x520x960 940x520x1310 1040x570x1090 1040x570x1440 1040x570x1740 1040x570x1940
Note: Specification and materials are subject to change without notice.
