Products – Forklift Attachments

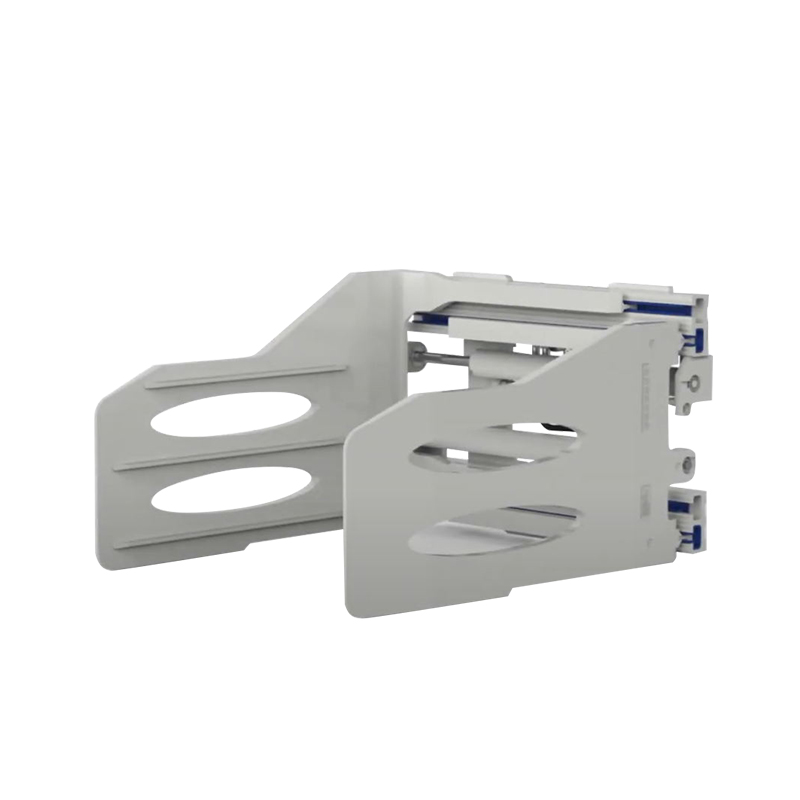

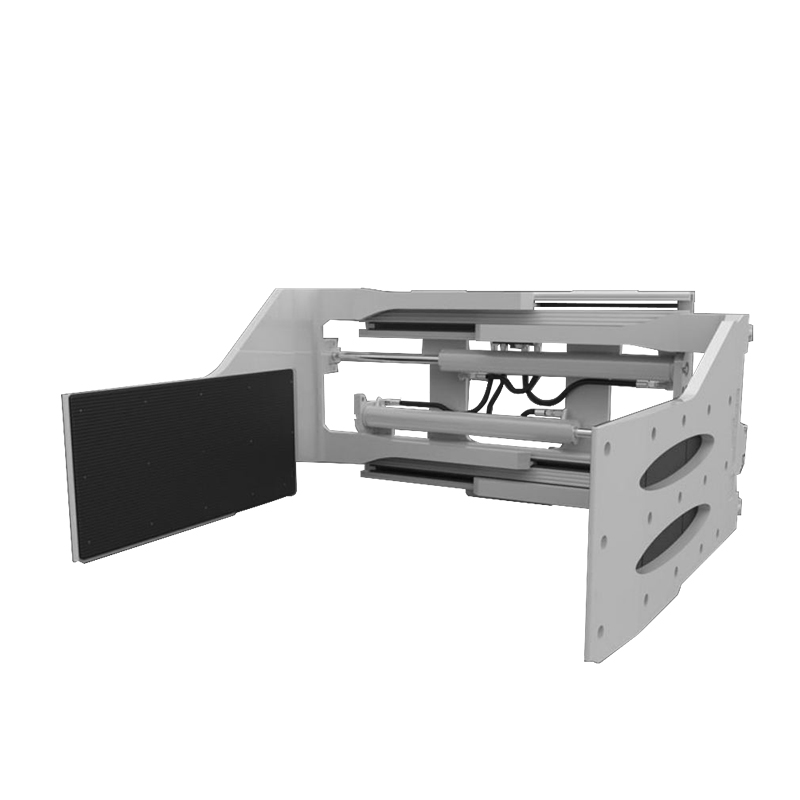

Name:Rotating Multi-purpose Clamp
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
 Side Shifter
 Fork Positioner
 Single Pallet Handlers
 Bale Clamp
 Materials Clamp
 Roll Shaft Clamp and Turnafork Clamp
 Paper Roll Clamp
 Rotating Clamp
 Rotator
Electric tow Tractor & Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Product Description:

- The Rotating Multi-purpose Clamp is suitable for various industrial environments, featuring a rotatable design for flexibility with different shapes and sizes of objects.

- Constructed with high-quality steel, sturdy and durable structure, stable load-bearing capacity.

- Easy operation, improving work efficiency.

Product Advantages:

- Versatile Use: Rotatable design suitable for various shapes and sizes of objects.

- Durable and Stable: Constructed with high-quality steel, sturdy structure, stable load-bearing capacity.

- Efficient Operation: Easy to use, improving work efficiency.

Specifications:
<
CAPACITY@ MODEL MOUTING CLASS MTG.ANGLE OPENING ARM ARM FRAME ARM VERTICAL WEIGHT EFFECTIVE HORIZONTAL
LOAD CENTER


RANGE HEIGHT LENGTH WIDTH THICKNESS CENTER OF
THICKNESS CENTER OF









GRAVITY

GRAVITY
(kg@mm)


A(mm) D(mm) B(mm) w(mm) E(mm) VCG(mm) (kg) ET(mm) HCG(@mm)
1600@500 GBX16D-B001 II 480-1770 600 1015 1040 75 335 650 277 345
1600@500 GBX16D-B018 II 410-1560 610 615 1000 50 352 530 233 210
1600@500 GBX16D-B002F II 550-1780 610 1070 940 80 352 707 233 375
2300@500 GBX23D-C005 III 590-1940 462 1190 1016 61 335 832 312 340
Previous:rotating type clampNext:ROTATING FORK CLAMP(1 PAIR FORKS)Return
