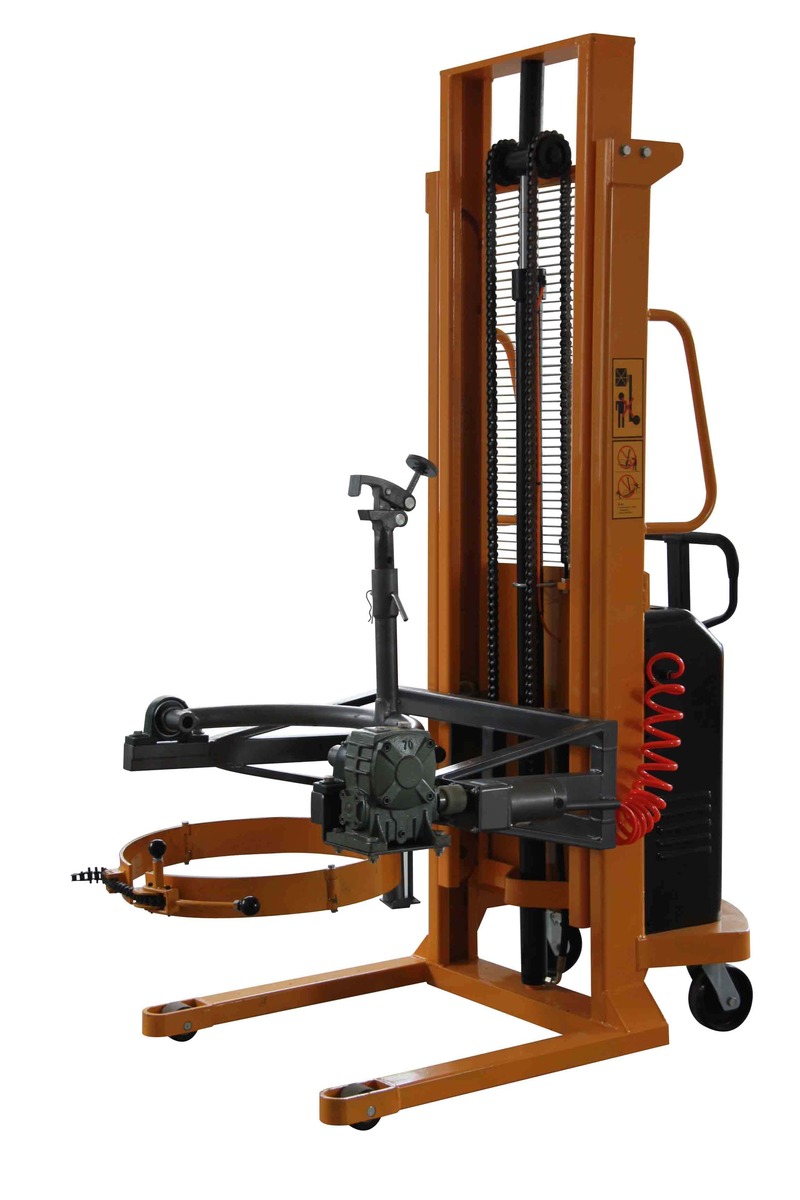

Name:YL450 Semi-Electric Hydraulic Drum Dumper
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
 Mechanical Drum Dumper
 Manual Hydraulic Drum Dumper
 Semi-Electric Hydraulic Drum Dumper
 Full Electric Hydraulic Drum Dumper
 Pneumatic and Other Drum Dumper
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
Electric Drum Dumper with Power Rotating device YL450

- High quality hydraulic power unit and maintenance-free battery.

- Two-stage vertical-Lift drum pourers make max lifting height to 2450mm.

- Combined Eagle-grip and Anchor ear structure, drums can electric rotate 180 °.

- Anchor ear structure is suitable for steel drums and plastic drums; Eagle-grip structure is suitable for steel drums.

Specifications:
Model YL450
Loading Capacity kg 450
Drum size 55 gallon ( (Ø572x900) steel, 210L plastic
Wheel Dimension mm Ø80*55 Ø150*50
Inner/Outer Width of Front Leg mm 630/810
Turning Radius mm 1750
Pump Unit Power kw/h 1.5
Battery Parameter Ah/V 120/12
Lifting Height mm 2450
Lifting Speed mm/s 120
Outline Dimension mm 1600x950x1920
Net weight kg 331
